Fully Automatic Strip Bag Back Sealing Packaging Machine,Automatic Packaging,304 Stainless Steel,30-50pack/MinTechnical Parameter:
Packaging materials:powder, particles, liquid(Depending on packaging requirements)
Packaging scope:1-50ml
Accuracy:±1-10% (Depending on the packaging material and quantity)
Packaging speed:25-50 wrap/min(Actual speed depends on the measured material situation)
Packaging film width:≤180mm(Standard 1 set of bag making specifications)
Bag making range:20≤Bag width≤80mm × bag length≤150mm
Sealing type:Twisted edge sealing
Back sealing width: 5-10mm, no pattern
Horizontal sealing width: 8-10mm, with diagonal mesh pattern (spacing of 1mm) or straight pattern (spacing of 2mm)
Cutting method: Round cut, with a spacing of 3mm between cutting blades or Flat cut
Easy to tear mouth: independent easy to tear mouth
Optoelectronic eye: JULONG dual color photoelectric
Bag pulling method: Inovance servo motor, heat sealing bag pulling
Packaging film: composite packaging material
Working voltage: 220V/50HZ single-phase 1.5KW
Gas source pressure: 6-8Kg Gas consumption: 1.0m3/min
Host weight: 200KG
External dimensions of the host: 938mm * 952mm * 1305mm (length * width * height)
Basic configuration:
Inovance 7 'color touch screen+Inovance PLC (Chinese and English operating languages), error prompt, self diagnosis function
Taiwan AIRTAC pneumatic components
PID 2-way temperature model control (1 way vertical seal, 1 way horizontal seal)
The Inovance servo motor has a heat sealed bag pulling structure, and the bag length size can be directly set on the touch screen, making it easy to operate
Schneider or OMRON electrical components
Simple film supply bracket structure, motor film delivery
Optoelectronic adjustment method: gear and rack
New CNC aluminum forming collar device
Horizontal sealing support plate exhaust device
Sealing air blowing cooling device
Independent cutting device (optional according to bag making needs)
Compact welded frame, compact equipment that does not take up space
Transparent acrylic safety door with safety warning signs
The entire machine is made of 304 stainless steel, and the parts in contact with the materials are all made of 304 material
Product Tags:
|
|

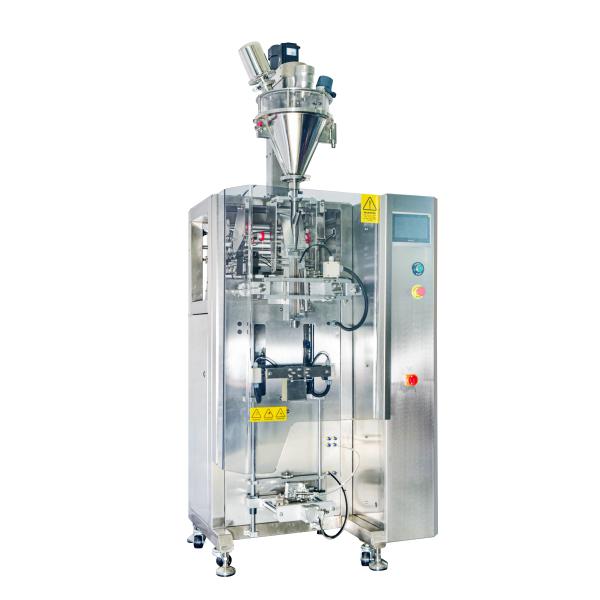

Fully Automatic Strip Packing Machine 304 SS 30 - 50pack/Min Images
|
